Description

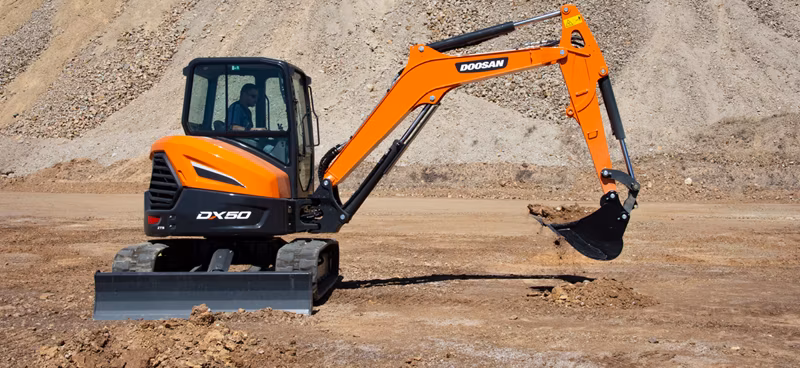

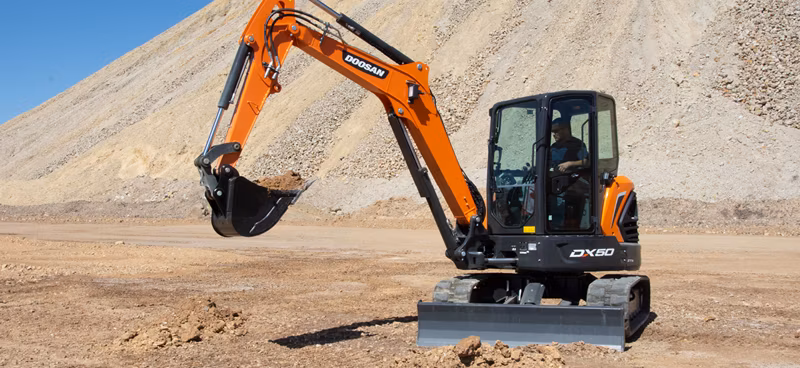

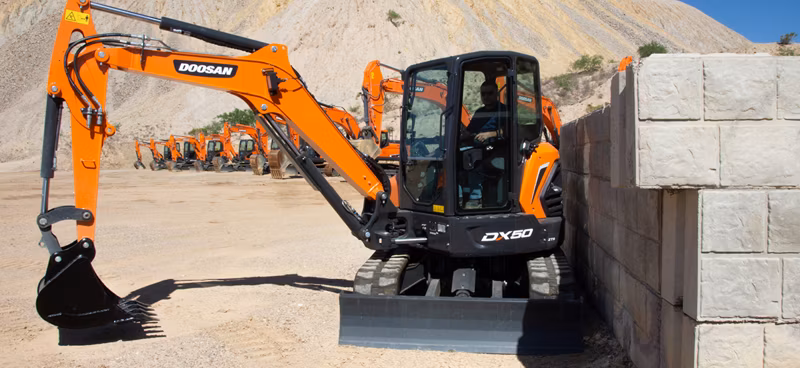

Develon DX50-5K
Specifications
Manufacturer
Develon
Model
DX50-5K
Year
2025
Category
Excavators
Subcategory
Mini Excavators
Engine Rated Flywheel Power (Gross)
49.7 hp @ 2,200 rpm (SAE-J1995)
Engine Rated Horse Power (Net)
49.7 hp @ 2,200 rpm
Engine Max. Torque (Net)
135 lbf ft @ 1,600 rpm
Engine Engine Emissions Tier (EPA)
Tier 4
Undercarriage Lower Rollers: Quantity Per Side
5
Undercarriage Upper Rollers: Quantity Per Side
1
Undercarriage Track Length
8' 3"
Travel System/Drive Mechanism Travel performance: Traction Force (Highest Value)
11270 lbf ft
Travel System/Drive Mechanism Travel performance: Traveling Speed - Low (XXX/)
1.8 mph
Travel System/Drive Mechanism Travel performance: Traveling Speed - High (/XXX)
2.8 mph
Travel System/Drive Mechanism Travel performance: Gradeability
25°
Weights Operating Weight
11,486 lb
Weights Standard Boom Length
9.1 ft
Weights Standard Arm Length
5 ft
Weights Standard Bucket Size
0.2 yd³
Weights Shoe Width
1' 3"
Working Range Max Digging Reach (Ground)
19' 3"
Working Range Max Digging Depth
11' 4"
Working Range Max Loading Height
13' 0"
Digging Force (ISO) Arm Digging Force - Pressure up
6,987 lb
Digging Force (ISO) Bucket Digging Force - Pressure up
9,511 lb
Dimensions Shipping Height - Hose (With Attachment)
8' 4"
Dimensions Shipping Length (Without Attachment)
17' 7"
Dimensions Shipping Width (Standard)
6' 5"
Dimensions Overall Height Over Cab
8' 4"
Hydraulic System Main Pump: Max. Flow Rate (each)
36.59 gal/min
Hydraulic System Main Pump: Main Relief Pressure
36.59 gal/min
