Description

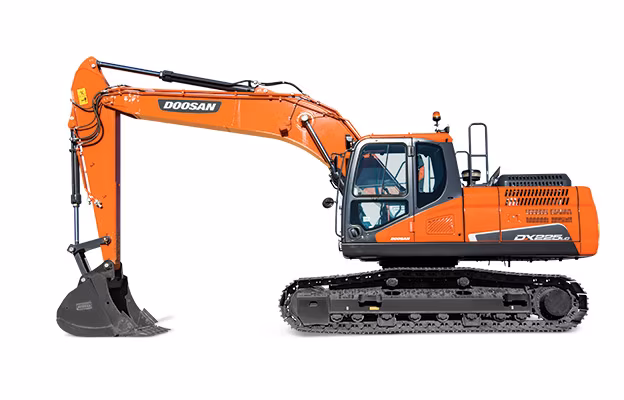

Develon DX225LC-5 (T4)
Specifications
Manufacturer
Develon
Model
DX225LC-5 (T4)
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Parent Id
0
Child Count
0
Rated Horse Power (Net)
162.1 hp @ 1,800 rpm
Max. Torque (Net)
557 lbf ft @ 1,400 rpm
Engine Emissions Tier (EPA)
T4
Rated Flywheel Power (Gross)
166.3 hp @ 1,800 rpm
Upper Rollers: Quantity Per Side
2
Lower Rollers: Quantity Per Side
8
Track Length
14' 7"
Track Link: Track Gauge
7' 10"
Swing Performance: Max Swing Torque
60757 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
10.9 rpm
Travel performance: Traction Force (Highest Value)
60715 lbf ft @ 100 %
Travel performance: Traveling Speed - Low (XXX/)
1.85 mph
Travel performance: Traveling Speed - High (/XXX)
3.41 mph
Operating Weight
52,086 lb
Standard Boom Length
18.7 ft
Standard Arm Length
9.51 ft
Standard Bucket Size
1.2 yd³
Shoe Width
2' 7"
Max Digging Reach (Ground)
31' 10"
Max Digging Depth
21' 7"
Max Loading Height
22' 5"
Arm Digging Force - Pressure up
23,810 lb
Bucket Digging Force - Pressure up
33,510 lb
Arm Digging Force - Normal
22,487 lb
Noise Level: Guaranteed Sound Power Level
103 dBA
Noise Level: Operator
70 dBA
Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground
14,660 lb @ 20 ft
Lifting Capacity over front @ Horizontal Distance - Ground Level
16,130 lb @ 20 ft
Lifting Capacity over front @ Horizontal Distance - 10 ft Below Ground
15,810 lb @ 20 ft
Travel performance: Gradeability
70°
Shipping Height - Hose (With Attachment)
9' 10"
Shipping Length (Without Attachment)
31' 1"
Shipping Width (Standard)
10' 5"
Overall Height Over Cab
9' 9"
Fuel Tank
105.67 gal
Hydraulic System
60.76 gal
Engine Coolant
10.14 gal
Engine Oil
7.13 gal
Hydraulic Tank
51.51 gal
Main Pump: Displacement
7 in³/rev
Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Main Pump: Max. Flow Rate (each)
54.55 gal/min
