Description

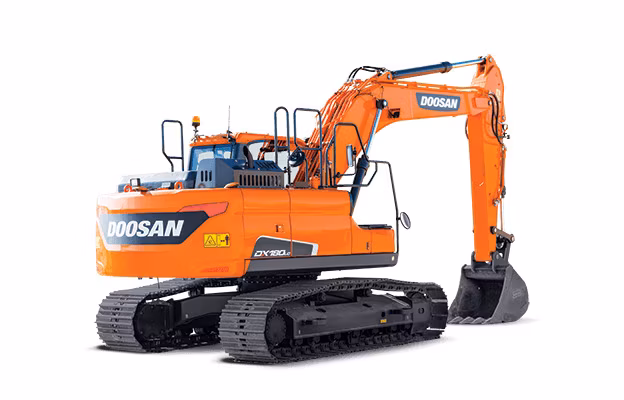

Develon DX180LC-5 (T4)
Specifications
Manufacturer
Develon
Model
DX180LC-5 (T4)
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Parent Id
0
Child Count
0
Rated Horse Power (Net)
128.5 hp @ 2,000 rpm
Max. Torque (Net)
391 lbf ft @ 1,400 rpm
Engine Emissions Tier (EPA)
T4
Rated Flywheel Power (Gross)
131.3 hp @ 2,000 rpm
Operating Weight
43,224 lb
Standard Boom Length
17.06 ft
Standard Arm Length
8.53 ft
Standard Bucket Size
0.92 yd³
Shoe Width
2' 3"
Upper Rollers: Quantity Per Side
2
Lower Rollers: Quantity Per Side
7
Track Length
13' 4"
Track Link: Track Gauge
7' 2"
Swing Performance: Max Swing Speed (At Efficiency)
10.52 rpm
Travel performance: Traction Force (Highest Value)
45195 lbf ft @ 100 %
Travel performance: Traveling Speed - Low (XXX/)
1.93 mph
Travel performance: Traveling Speed - High (/XXX)
3.17 mph
Max Digging Reach (Ground)
29' 7"
Max Digging Depth
20' 0"
Max Loading Height
21' 3"
Arm Digging Force - Pressure up
20,503 lb
Bucket Digging Force - Pressure up
28,881 lb
Arm Digging Force - Normal
19,180 lb
Noise Level: Guaranteed Sound Power Level
102 dBA
Noise Level: Operator
68 dBA
Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground
15,270 lb @ 15 ft
Lifting Capacity over front @ Horizontal Distance - Ground Level
18,270 lb @ 15 ft
Lifting Capacity over front @ Horizontal Distance - 10 ft Below Ground
16,320 lb @ 15 ft
Travel performance: Gradeability
70°
Swing Performance: Max Swing Torque
46653 lbf ft
Shipping Height - Hose (With Attachment)
9' 4"
Shipping Length (Without Attachment)
28' 9"
Shipping Width (Standard)
9' 6"
Overall Height Over Cab
9' 7"
Fuel Tank
77.14 gal
Hydraulic System
55.48 gal
Engine Coolant
6.6 gal
Engine Oil
2.11 gal
Hydraulic Tank
47.82 gal
Main Pump: Displacement
4.64 in³/rev
Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Main Pump: Max. Flow Rate (each)
40.15 gal/min
