Description

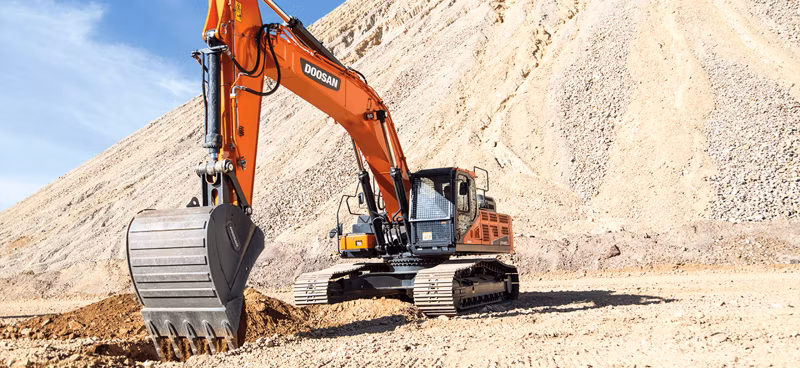

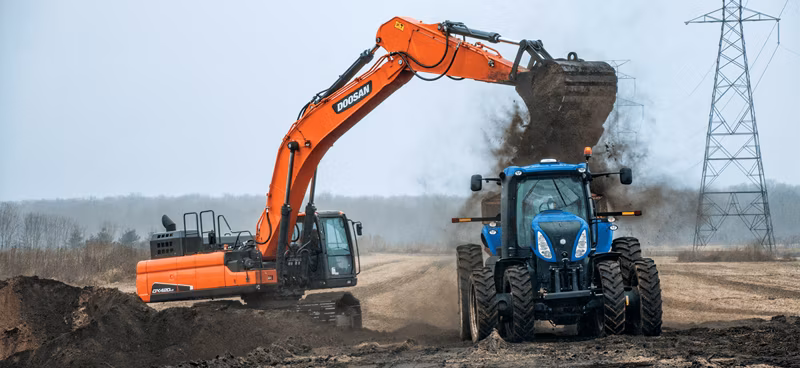

Develon DX420LC-5
Specifications
Manufacturer
Develon
Model
DX420LC-5
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Engine Emissions Tier (EPA)
T4 (EPA)
Engine Oil
11.89 gal
Fuel Tank
169.07 gal
Max Torque (Net)
1176 lbf·ft @ 1,300 rpm
Rated Horse Power (Net)
337.9 hp @ 1,800 rpm
Engine Coolant
13.47 gal
Rated Flywheel Power (Gross)
344.6 hp @ 1,800 rpm (ISO-9249)
Max. Torque (Net)
1176 lbf ft @ 1,300 rpm
Swing Performance: Max Swing Torque
118332 lbf ft
Engine Rated Flywheel Power (Gross)
344.6 hp @ 1,800 rpm (ISO-9249)
Engine Rated Horse Power (Net)
337.9 hp @ 1,800 rpm
Engine Engine Emissions Tier (EPA)
T4
Engine Max. Torque (Net)
1176 lbf ft @ 1,300 rpm
Arm Digging Force - Pressure up
43,431 lb
Track Link: Track Gauge
9' 0"
Travel performance: Traveling Speed - Low (XXX/)
1.93 mph
Noise Level: Guaranteed Sound Power Level
106 dBA
Swing Performance: Max Swing Speed (At Efficiency)
8.82 rpm (at efficiency)
Upper Rollers: Quantity Per Side
2
Noise Level: Operator
72 dBA
Standard Bucket Size
1.9 m³
Travel performance: Traveling Speed - High (/XXX)
3.17 mph
Travel Performance: Gradeability
70°
Lower Rollers: Quantity Per Side
9
Travel Performance: Traction Force (Highest Value)
90169 lbf ft
Hydraulic System
126.8 gal
Hydraulic Tank
103.03 gal
Undercarriage Upper Rollers: Quantity Per Side
2
Undercarriage Lower Rollers: Quantity Per Side
9
Undercarriage Track Length
17' 0"
Undercarriage Track Link: Track Gauge
6' 6"
Swing Mechanism Swing Performance: Max Swing Torque
34718 lbf ft
Swing Mechanism Swing Performance: Max Swing Speed (At Efficiency)
8.82 rpm
Travel System/Drive Mechanism Travel performance: Traction Force (Highest Value)
90169 lbf ft
Travel System/Drive Mechanism Travel performance: Traveling Speed - Low (XXX/)
1.93 mph
Travel System/Drive Mechanism Travel performance: Traveling Speed - High (/XXX)
3.17 mph
Weights Operating Weight
94,799 lb
Weights Standard Boom Length
21.98 ft
Weights Standard Arm Length
10.66 ft
Weights Standard Bucket Size
2.49 yd³
Weights Shoe Width
2' 7"
Working Range Max Digging Reach (Ground)
37' 0"
Working Range Max Digging Depth
25' 4"
Working Range Max Loading Height
25' 3"
Digging Force (ISO) Arm Digging Force - Pressure up
43,431 lb
Digging Force (ISO) Bucket Digging Force - Pressure up
59,745 lb
Digging Force (ISO) Arm Digging Force - Normal
41,006 lb
Refill Capacities Fuel Tank
169.07 gal
Refill Capacities Hydraulic System
126.8 gal
Refill Capacities Engine Coolant
13.47 gal
Refill Capacities Engine Oil
11.89 gal
Refill Capacities Hydraulic Tank
103.03 gal
Environment Noise Level: Guaranteed Sound Power Level
106 dBA
Environment Noise Level: Operator
72 dBA
Lift Capacity Lifting Capacity over front @ Horizontal Distance - Ground Level
37,380 lb @ 20 ft
Operating Weight
94,799 lb
Overall Height Over Cab
10' 4"
Shipping Length (Without Attachment)
38' 6" (without attachments)
Shipping Width (Standard)
11' 7" (standard)
Track Length
17' 0"
Standard Boom Length
21.98 ft
Standard Arm Length
10.66 ft
Standard Bucket Size
2.49 yd³
Shoe Width
2' 7"
Shipping Height - Hose (With Attachment)
11' 4"
Max Digging Reach (Ground)
37' 0"
Max Digging Depth
25' 4"
Max Loading Height
25' 3"
Bucket Digging Force - Pressure Up
59,745 lb
Arm Digging Force - Normal
41,006 lb
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Above Ground
31,820 lb @ 20 ft
Lifting Capacity Over Front @ Horizontal Distance - Ground Level
37,380 lb @ 20 ft
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground
35,010 lb @ 20 ft
Dimensions Shipping Length (Without Attachment)
38' 6"
Dimensions Shipping Width (Standard)
11' 7"
Dimensions Overall Height Over Cab
10' 4"
Dimensions Shipping Height - Hose (With Attachment)
11' 4"
Lower Rollers: Quantity Per Side
9
Main Pump: Displacement
11.29 in³/rev
Main Pump: Max Flow Rate (each)
88.5 gal/min (each)
Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Main Pump: Max. Flow Rate (Each)
88.5 gal/min
Hydraulic System Main Pump: Displacement
11.29 in³/rev
Hydraulic System Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Hydraulic System Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Hydraulic System Main Pump: Max. Flow Rate (each)
88.5 gal/min
