Description

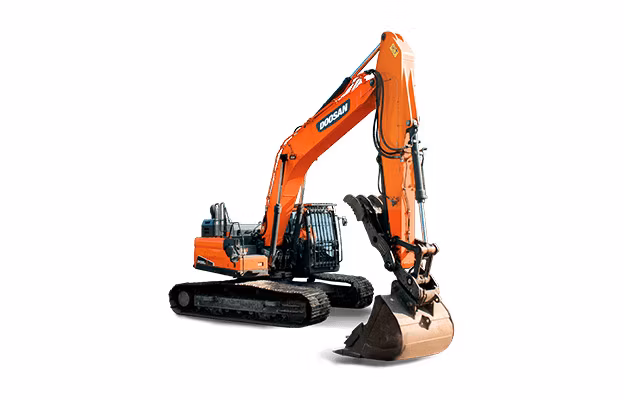

Develon DX300LC-5
Specifications
Manufacturer
Develon
Model
DX300LC-5
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Rated Flywheel Power (Gross)
270.9 hp @ 1,800 rpm (DIN-6271) (gross)
Engine Emissions Tier (EPA)
T4 (EPA)
Max Torque (Net)
938 lbf·ft @ 1,300 rpm
Rated Horse Power (Net)
266.5 hp @ 1,800 rpm
Max. Torque (Net)
940 lbf ft @ 1,300 rpm
Swing Performance: Max Swing Torque
87787 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
9.68 rpm
Noise Level: Guaranteed Sound Power Level
104 dBA
Standard Arm Length
10.17 ft
Standard Boom Length
20.49 ft
Max Digging Reach (Ground)
34' 6" (ground)
Noise Level: Operator
71 dBA
Standard Bucket Size
1.27 m³
Travel performance: Traveling Speed - Low (XXX/)
1.86 mph
Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground
20,500 lb @ 20 ft (10 ft)
Max Digging Depth
23' 11"
Swing Performance: Max Swing Speed (At Efficiency)
9.88 rpm (at efficiency)
Shoe Width
2' 7"
Travel performance: Traveling Speed - High (/XXX)
3.29 mph
Bucket Digging Force - Pressure up
44,092 lb
Arm Digging Force - Normal
29,101 lb
Lifting Capacity over front @ Horizontal Distance - 10 ft Below Ground
25,680 lb @ 20 ft (10 ft)
Operating Weight
68,764 lb
Fuel Tank
132.09 gal
Engine Coolant
12.94 gal
Engine Oil
9.51 gal
Upper Rollers: Quantity Per Side
2
Lower Rollers: Quantity Per Side
9
Track Link: Track Gauge
8' 6"
Travel Performance: Traction Force (Highest Value)
77162 lbf ft
Travel Performance: Traveling Speed - High (/Xxx)
3.42 mph
Travel Performance: Gradeability
35° @ 70 %
Hydraulic System
81.89 gal
Hydraulic Tank
73.97 gal
Operating Weight
68,764 lb
Overall Height Over Cab
10' 0"
Shipping Length (Without Attachment)
34' 8" (without attachments)
Shipping Width (Standard)
11' 1" (standard)
Track Length
16' 2"
Max Digging Depth
23' 11"
Max Loading Height
23' 10"
Standard Bucket Size
1.66 yd³
Shipping Height - Hose (With Attachment)
11' 0"
Arm Digging Force - Pressure Up
30,644 lb
Lifting Capacity Over Front @ Horizontal Distance - Ground Level
25,710 lb @ 20 ft
Lower Rollers: Quantity Per Side
9
Main Pump: Displacement
8.42 in³/rev
Main Pump: Max Flow Rate (each)
65.51 gal/min (each)
Control Valve: Relief Valve Pressure (Normal)
4,978 psi
Control Valve: Relief Valve Pressure (Boost)
5,263 psi
Main Pump: Max. Flow Rate (Each)
65.51 gal/min
