Description

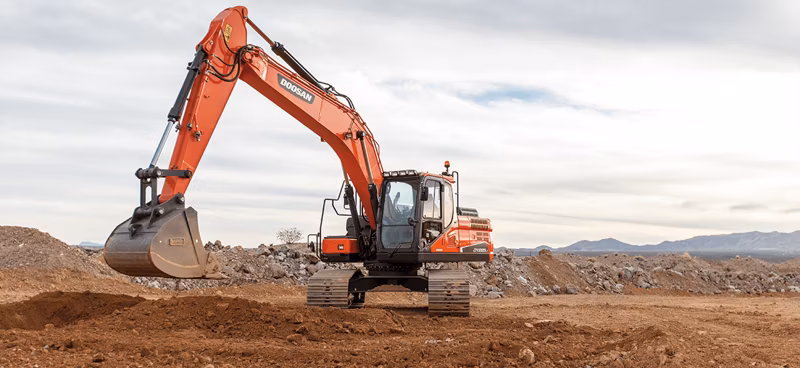

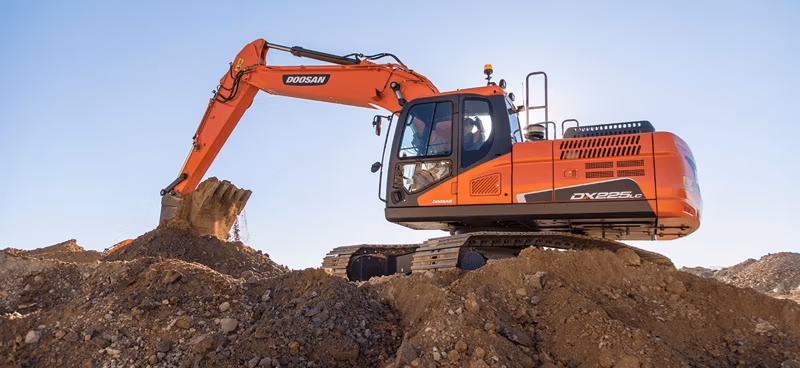

Develon DX225LC-5
Specifications
Manufacturer
Develon
Model
DX225LC-5
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Max Torque (Net)
557 lbf·ft @ 1,400 rpm
Rated Horse Power (Net)
162.1 hp @ 1,800 rpm
Rated Flywheel Power (Gross)
166.3 hp @ 1,800 rpm (gross)
Engine Coolant
10.14 gal
Engine Emissions Tier (EPA)
T4 (EPA)
Engine Oil
7.13 gal
Fuel Tank
105.67 gal
Max. Torque (Net)
557 lbf ft @ 1,400 rpm
Engine Rated Flywheel Power (Gross)
166.3 hp @ 1,800 rpm
Engine Rated Horse Power (Net)
162.1 hp @ 1,800 rpm
Engine Max. Torque (Net)
557 lbf ft @ 1,400 rpm
Engine Engine Emissions Tier (EPA)
T4
Noise Level: Operator
70 dBA
Bucket Digging Force - Pressure up
33,510 lb
Noise Level: Guaranteed Sound Power Level
103 dBA
Max Digging Depth
21' 7"
Max Digging Reach (Ground)
31' 10" (ground)
Shoe Width
2' 7"
Standard Arm Length
9.51 ft
Track Link: Track Gauge
7' 10"
Swing Performance: Max Swing Speed (At Efficiency)
10.9 rpm (at efficiency)
Standard Bucket Size
0.92 m³
Standard Boom Length
18.7 ft
Travel performance: Traveling Speed - Low (XXX/)
1.85 mph
Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground
14,660 lb @ 20 ft (10 ft)
Max Loading Height
22' 5"
Arm Digging Force - Normal
22,487 lb
Upper Rollers: Quantity Per Side
2
Travel performance: Traveling Speed - High (/XXX)
3.41 mph
Lifting Capacity over front @ Horizontal Distance - 10 ft Below Ground
15,810 lb @ 20 ft (10 ft)
Lifting Capacity over front @ Horizontal Distance - Ground Level
16,130 lb @ 20 ft
Lower Rollers: Quantity Per Side
8
Swing Performance: Max Swing Torque
60757 lbf ft
Travel Performance: Traction Force (Highest Value)
60715 lbf ft @ 100 %
Travel Performance: Gradeability
70°
Operating Weight
52,086 lb
Arm Digging Force - Pressure Up
23,810 lb
Undercarriage Upper Rollers: Quantity Per Side
2
Undercarriage Lower Rollers: Quantity Per Side
8
Undercarriage Track Length
14' 7"
Undercarriage Track Link: Track Gauge
6' 6"
Swing Mechanism Swing Performance: Max Swing Torque
34718 lbf ft
Travel System/Drive Mechanism Travel performance: Traction Force (Highest Value)
60715 lbf ft @ 100 %
Travel System/Drive Mechanism Travel performance: Traveling Speed - Low (XXX/)
1.85 mph
Travel System/Drive Mechanism Travel performance: Traveling Speed - High (/XXX)
3.41 mph
Weights Operating Weight
52,086 lb
Weights Standard Boom Length
18.7 ft
Weights Standard Arm Length
9.51 ft
Weights Standard Bucket Size
1.2 yd³
Weights Shoe Width
2' 7"
Working Range Max Digging Reach (Ground)
31' 10"
Working Range Max Digging Depth
21' 7"
Working Range Max Loading Height
22' 5"
Digging Force (ISO) Arm Digging Force - Pressure up
23,810 lb
Digging Force (ISO) Bucket Digging Force - Pressure up
33,510 lb
Digging Force (ISO) Arm Digging Force - Normal
22,487 lb
Refill Capacities Fuel Tank
105.67 gal
Refill Capacities Hydraulic System
60.76 gal
Refill Capacities Engine Coolant
10.14 gal
Refill Capacities Engine Oil
7.13 gal
Refill Capacities Hydraulic Tank
51.51 gal
Environment Noise Level: Guaranteed Sound Power Level
103 dBA
Environment Noise Level: Operator
70 dBA
Lift Capacity Lifting Capacity over front @ Horizontal Distance - Ground Level
16,130 lb @ 20 ft
Overall Height Over Cab
9' 9"
Shipping Length (Without Attachment)
31' 1" (without attachments)
Shipping Width (Standard)
10' 5" (standard)
Track Length
14' 7"
Standard Bucket Size
1.2 yd³
Shipping Height - Hose (With Attachment)
9' 10"
Dimensions Shipping Height - Hose (With Attachment)
9' 10"
Dimensions Shipping Length (Without Attachment)
31' 1"
Dimensions Shipping Width (Standard)
10' 5"
Dimensions Overall Height Over Cab
9' 9"
Hydraulic System
60.76 gal
Hydraulic Tank
51.51 gal
Lower Rollers: Quantity Per Side
8
Main Pump: Displacement
7 in³/rev
Main Pump: Max Flow Rate (each)
54.55 gal/min (each)
Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Main Pump: Max. Flow Rate (Each)
54.55 gal/min
Hydraulic System Main Pump: Displacement
7 in³/rev
Hydraulic System Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Hydraulic System Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Hydraulic System Main Pump: Max. Flow Rate (each)
54.55 gal/min
Hydraulic System Main Pump: Main Relief Pressure
1,294 psi
