Description

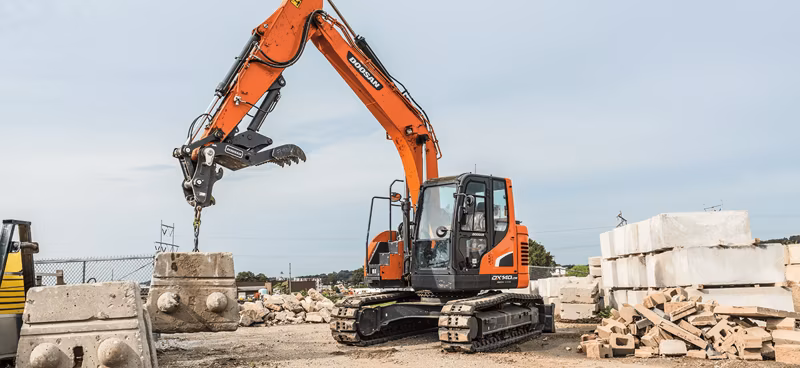

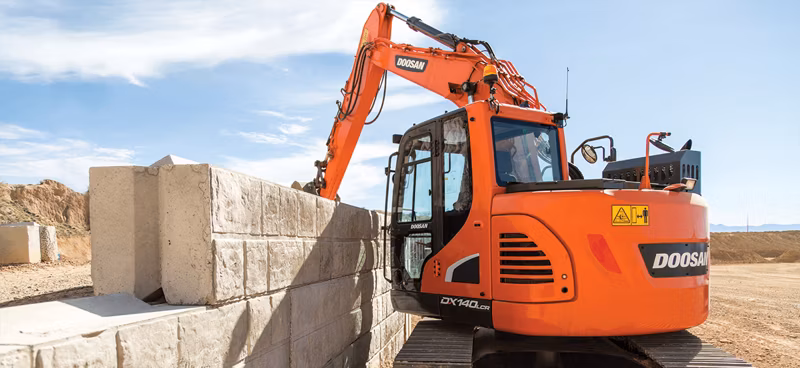

Develon DX140LCR-5
Specifications
Manufacturer
Develon
Model
DX140LCR-5
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Fuel Tank
55.48 gal
Max Torque (Net)
369 lbf·ft @ 1,400 rpm
Rated Horse Power (Net)
109.4 Hp @ 2,000 Rpm
Rated Flywheel Power (Gross)
115.2 hp @ 2,000 rpm (gross)
Max. Torque (Net)
369 lbf ft @ 1,400 Rpm
Engine Emissions Tier (Epa)
T4
Engine Coolant
6.6 gal
Engine Oil
2.11 gal
Engine Rated Flywheel Power (Gross)
115.2 hp @ 2,000 rpm
Engine Rated Horse Power (Net)
109.4 hp @ 2,000 rpm
Engine Max. Torque (Net)
369 lbf ft @ 1,400 rpm
Engine Engine Emissions Tier (EPA)
T4
Standard Bucket Size
0.39 m³
Noise Level: Guaranteed Sound Power Level
101 dBA
Swing Performance: Max Swing Speed (At Efficiency)
10.65 rpm (at efficiency)
Lifting Capacity over front @ Horizontal Distance - Ground Level
12,000 lb @ 15 ft
Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground
10,320 lb @ 15 ft (10 ft)
Upper Rollers: Quantity Per Side
1
Track Link: Track Gauge
6' 6"
Swing Performance: Max Swing Torque
34718 lbf ft
Travel Performance: Traction Force (Highest Value)
29101 lbf ft @ 100 %
Travel Performance: Traveling Speed - Low (Xxx/)
1.74 mph
Travel Performance: Traveling Speed - High (/Xxx)
2.92 mph
Travel Performance: Gradeability
70°
Operating Weight
34,987 lb
Arm Digging Force - Pressure Up
13,228 lb
Bucket Digging Force - Pressure Up
24,471 lb
Arm Digging Force - Normal
12,346 lb
Noise Level: Operator
73 dBA
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground
11,800 lb @ 15 ft
Undercarriage Upper Rollers: Quantity Per Side
1
Undercarriage Lower Rollers: Quantity Per Side
7
Undercarriage Track Length
12' 3"
Undercarriage Track Link: Track Gauge
6' 6"
Swing Mechanism Swing Performance: Max Swing Speed (At Efficiency)
10.6 rpm
Swing Mechanism Swing Performance: Max Swing Torque
34718 lbf ft
Travel System/Drive Mechanism Travel performance: Traction Force (Highest Value)
29101 lbf ft @ 100 %
Travel System/Drive Mechanism Travel performance: Traveling Speed - Low (XXX/)
1.74 mph
Travel System/Drive Mechanism Travel performance: Traveling Speed - High (/XXX)
2.92 mph
Weights Operating Weight
34,987 lb
Weights Standard Boom Length
15.09 ft
Weights Standard Arm Length
9.84 ft
Weights Standard Bucket Size
0.51 yd³
Weights Shoe Width
1' 11"
Working Range
Max Digging Reach (Ground)
27' 11"
Working Range Max Digging Depth
19' 7"
Working Range Max Loading Height
23' 2"
Digging Force (ISO) Arm Digging Force - Normal
12,346 lb
Digging Force (ISO) Arm Digging Force - Pressure up
13,228 lb
Digging Force (ISO) Bucket Digging Force - Pressure up
24,471 lb
Environment Noise Level: Guaranteed Sound Power Level
101 dBA
Environment Noise Level: Operator
73 dBA
Lift Capacity Lifting Capacity over front @ Horizontal Distance - Ground Level
12,000 lb @ 15 ft
Lift Capacity Lifting Capacity over front @ Horizontal Distance - 10 ft Below Ground
11,800 lb @ 15 ft
Refill Capacities Fuel Tank
55.48 gal
Refill Capacities Hydraulic System
42.53 gal
Refill Capacities Engine Coolant
6.6 gal
Refill Capacities Engine Oil
2.11 gal
Refill Capacities Hydraulic Tank
34.34 gal
Shipping Length (Without Attachment)
24' 0" (without attachments)
Shipping Width (Standard)
8' 5" (standard)
Track Length
12' 3"
Standard Boom Length
15.09 ft
Standard Arm Length
9.84 ft
Standard Bucket Size
0.51 yd³
Shoe Width
1' 11"
Shipping Height - Hose (With Attachment)
10' 3"
Overall Height Over Cab
9' 3"
Max Digging Reach (Ground)
27' 11"
Max Digging Depth
19' 7"
Max Loading Height
23' 2"
Dimensions Shipping Height - Hose (With Attachment)
10' 3"
Dimensions Shipping Length (Without Attachment)
24' 0"
Dimensions Shipping Width (Standard)
8' 5"
Dimensions Overall Height Over Cab
9' 3"
Control Valve: Relief Valve Pressure (Boost)
4,978 Psi
Lower Rollers: Quantity Per Side
7
Main Pump: Displacement
3.48 In³/Rev
Main Pump: Max Flow Rate (each)
30.12 gal/min (each)
Control Valve: Relief Valve Pressure (Normal)
4,694 Psi
Main Pump: Max. Flow Rate (Each)
30.12 Gal/Min
Hydraulic System
42.53 gal
Hydraulic Tank
34.34 gal
Hydraulic System Main Pump: Displacement
3.48 in³/rev
Hydraulic System Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Hydraulic System Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Hydraulic System Main Pump: Max. Flow Rate (each)
30.12 gal/min
