Description

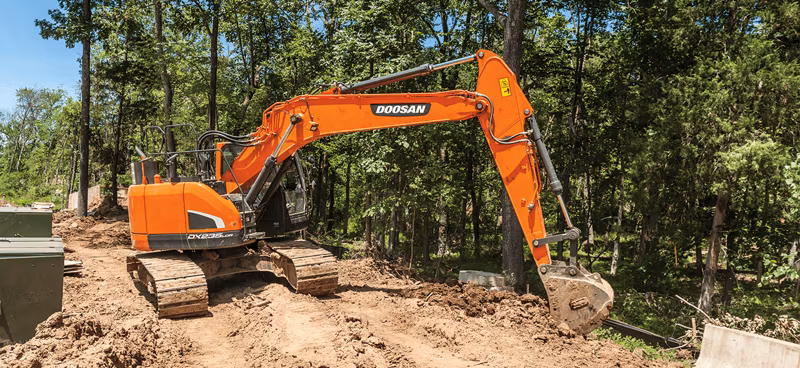

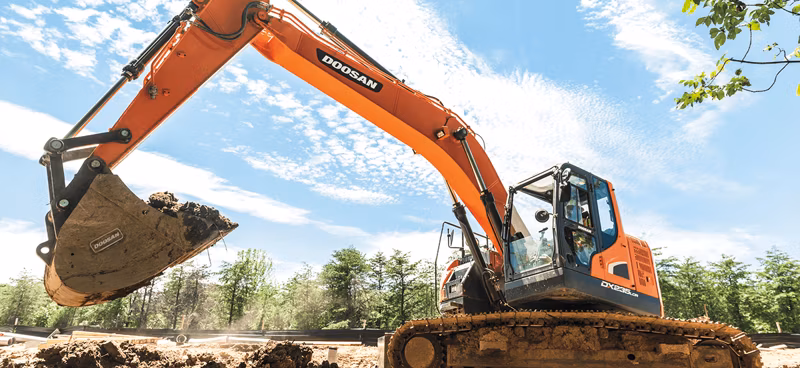

Develon DX235LCR-5
Specifications
Manufacturer
Develon
Model
DX235LCR-5
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Fuel Tank
81.89 gal
Engine Oil
7.13 gal
Rated Flywheel Power (Gross)
189.4 hp @ 1,900 rpm (SAE J1995)
Rated Horse Power (Net)
180.5 hp @ 1,900 rpm (SAE J1349)
Max. Torque (Net)
593 lbf ft @ 1,400 rpm
Engine Emissions Tier (Epa)
T4
Engine Coolant
8.19 gal
Swing Performance: Max Swing Torque
71245 lbf·ft
Arm Digging Force - Pressure up
24,471 lb
Lifting Capacity over front @ Horizontal Distance - Ground Level
15,740 lb @ 20 ft
Noise Level: Guaranteed Sound Power Level
103 dBA
Swing Performance: Max Swing Speed (At Efficiency)
11.3 rpm (at efficiency)
Travel performance: Traction Force (Highest Value)
64375 lbf·ft @ 100 % (highest value)
Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground
16,830 lb @ 20 ft (10 ft)
Bucket Digging Force - Pressure up
35,274 lb
Standard Bucket Size
0.92 m³
Travel performance: Traveling Speed - High (/XXX)
3.6 mph
Track Link: Track Gauge
7' 10"
Travel performance: Traveling Speed - Low (XXX/)
1.99 mph
Travel performance: Gradeability
70°
Arm Digging Force - Normal
23,149 lb
Noise Level: Operator
74 dBA
Upper Rollers: Quantity Per Side
2
Operating Weight
56,019 lb
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground
15,720 lb @ 20 ft
Undercarriage Track Length
14' 7"
Undercarriage Track Link: Track Gauge
6' 6"
Swing Mechanism Swing Performance: Max Swing Torque
34718 lbf ft
Weights Standard Bucket Size
1.2 yd³
Working Range Max Digging Reach (Ground)
31' 7"
Refill Capacities Engine Coolant
8.19 gal
Refill Capacities Engine Oil
7.13 gal
Refill Capacities Hydraulic Tank
5.19 gal
Track Length
14' 7"
Overall Height Over Cab
10' 1"
Shipping Length (Without Attachment)
29' 5" (without attachments)
Standard Boom Length
18.7 ft
Standard Arm Length
9.51 ft
Shoe Width
2' 7"
Shipping Height - Hose (With Attachment)
9' 8"
Shipping Width (Standard)
10' 5"
Max Digging Depth
21' 10"
Max Loading Height
26' 0"
Dimensions Shipping Height - Hose (With Attachment)
9' 8"
Dimensions Shipping Length (Without Attachment)
29' 5"
Dimensions Shipping Width (Standard)
10' 5"
Dimensions Overall Height Over Cab
10' 1"
Control Valve: Relief Valve Pressure (Normal)
4,978 psi
Control Valve: Relief Valve Pressure (Boost)
5,263 psi
Lower Rollers: Quantity Per Side
9
Main Pump: Displacement
7.05 in³/rev
Main Pump: Max. Flow Rate (Each)
58.73 gal/min
Hydraulic System
60.76 gal
Hydraulic Tank
50.19 gal
Hydraulic System Main Pump: Displacement
7.05 in³/rev
Hydraulic System Main Pump: Max. Flow Rate (each)
58.73 gal/min
Hydraulic System Main Pump: Main Relief Pressure
1,294 psi
