Description

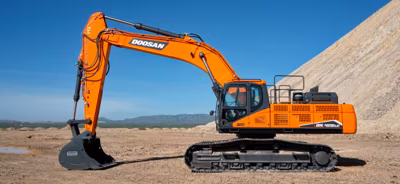

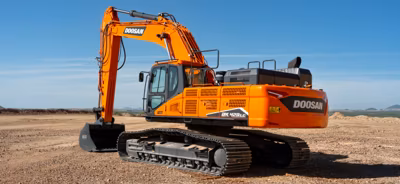

Develon DX420LC-7
Specifications
Manufacturer
Develon
Model
DX420LC-7
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Model
DC13
Rated Flywheel Power (Gross)
344.6 hp @ 1800 rpm
Rated Horse Power (Net)
337.9 hp @ 1800 rpm
Max. Torque (Net)
1143 lbf ft @ 800 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
CEGR + DOC + SCR
Engine Make
Scania
Engine Number Of Cylinders
6
Engine Displacement
775 in³
Swing Performance: Max Swing Torque
95837 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
9.4 rpm
Engine Coolant
13.95 gal
Engine Oil
11.89 gal
Upper Rollers: Quantity Per Side
2
Lower Rollers: Quantity Per Side
8
Travel Performance: Traction Force (Highest Value)
95769 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
2.05 mph
Travel Performance: Traveling Speed - High (/Xxx)
3.36 mph
Travel Performance: Gradeability
35 ° @ 70 %
Operating Weight
97718 lb
Standard Bucket Size
2.51 yd³
Max Digging Reach (Ground)
36' 9"
Max Digging Height
34' 9"
Max Digging Depth
25' 0"
Bucket Digging Force - Pressure Up
55078 lbf
Arm Digging Force - Normal
41365 lbf
Fuel Tank
166.43 gal
Noise Level: Guaranteed Sound Power Level
105 dBA
Noise Level: Operator
71 dBA
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Above Ground
45270 lb @ 15 ft
Lifting Capacity Over Front @ Horizontal Distance - Ground Level
46130 lb @ 15 ft
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground
46340 lb @ 15 ft
Lifting Capacity Over Front @ Horizontal Distance - 3M Above Ground
45261 lb @ 14.76 ft
Lifting Capacity Over Front @ Horizontal Distance - 3M Below Ground
46341 lb @ 14.76 ft
Track Length
17' 0"
Track Link: Track Gauge
9' 0"
Ground Clearance
1' 11"
Standard Boom Length
21' 11"
Standard Arm Length
10' 7"
Shoe Width
2' 11"
Shipping Height - Hose (With Attachment)
11' 4"
Shipping Length (Without Attachment)
38' 6"
Shipping Width (Standard)
12' 11"
Overall Height Over Cab
10' 6"
Max Loading Height
10' 1"
Main Pump: Displacement
11.29 in³/rev
Main Pump: Max. Flow Rate (Each)
87.97 gal/min
Main Pump: Quantity
2
Main Pump: Main Relief Pressure
4700 psi
Ground Pressure
7.82 psi
Hydraulic System
97.74 gal
Hydraulic Tank
70.01 gal
